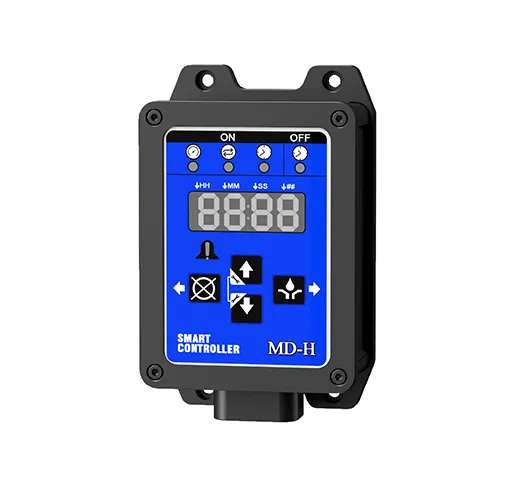

MD-H Controller
The MD-H multi-functional controller is designed for automatic lubrication systems, compatible with both progressive and single-line systems. It enables programmatic control of lubrication by allowing you to customize lubrication timing, pressure, cycle count and the number of lubricated points, ensuring precise lubrication and improved equipment efficiency. Operated through a user-friendly interface, it is easy to configure and use, reducing labor costs. Its special service mode speeds up setup and maintenance time. Housed in a rugged full-metal enclosure with IP 69K protection, it is built for harsh environments and is ideal for both single-line and progressive automatic lubrication systems.
Technical Information of MD-H Controller
Technical data | |
Power Supply | 9 – 30 VDC |
Controller Power Consumption | 1W |
Cycle / Pressure Switch Input | 9 – 30 VDC, Normally Open, PNP switch |
| Level Signal Input | 9 – 30 VDC, Normally Open, PNP switch |
| Lubrication Pump Voltage | Equal to power supply voltage |
| Maximum Lubrication Pump Switching Voltage | 30 VDC |
| Minimum Lubrication Pump Switching Current | 100 mA (DC) |
| Alarm Output Voltage | Equal to power supply voltage |
| Maximum Alarm Output Switching Voltage | 30 VDC |
| Maximum Alarm Output Switching Current | 2 A (DC) |
| Protection Rating | IP69K |
| Operating Temperature Range | -40°C to 80°C |
| Maximum Humidity | 90% RH (non-condensing) |
| Maximum Lubrication Pump Switching Current | 16 A (DC), 20 A (Peak) |

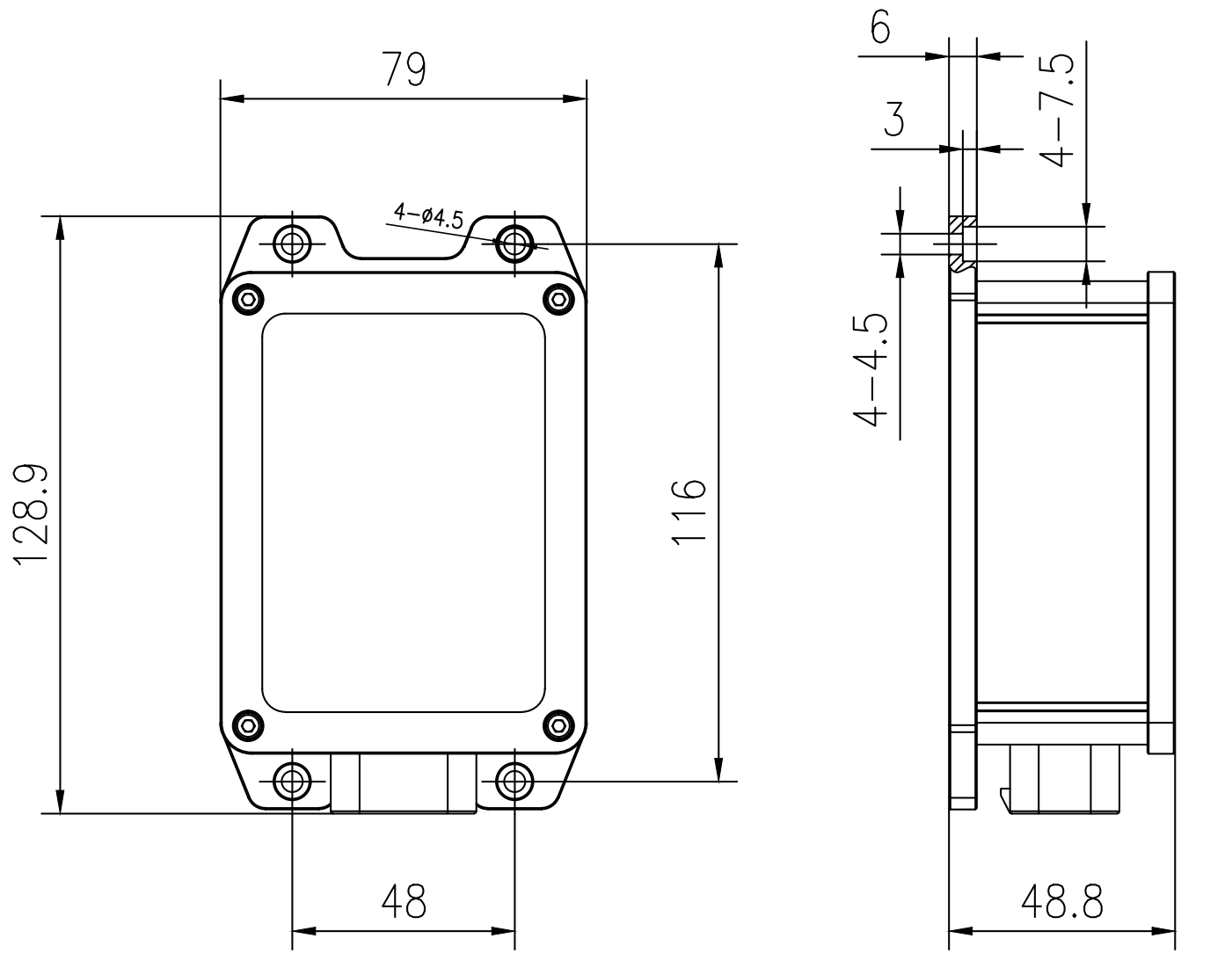

Technical Drawing of MD-H Controller
Dimensions (mm)
Characteristics of MD-H Controller
16A High Current Output
Full Metal Die-Cast Housing
Built to Withstand Harsh Outdoor Conditions
