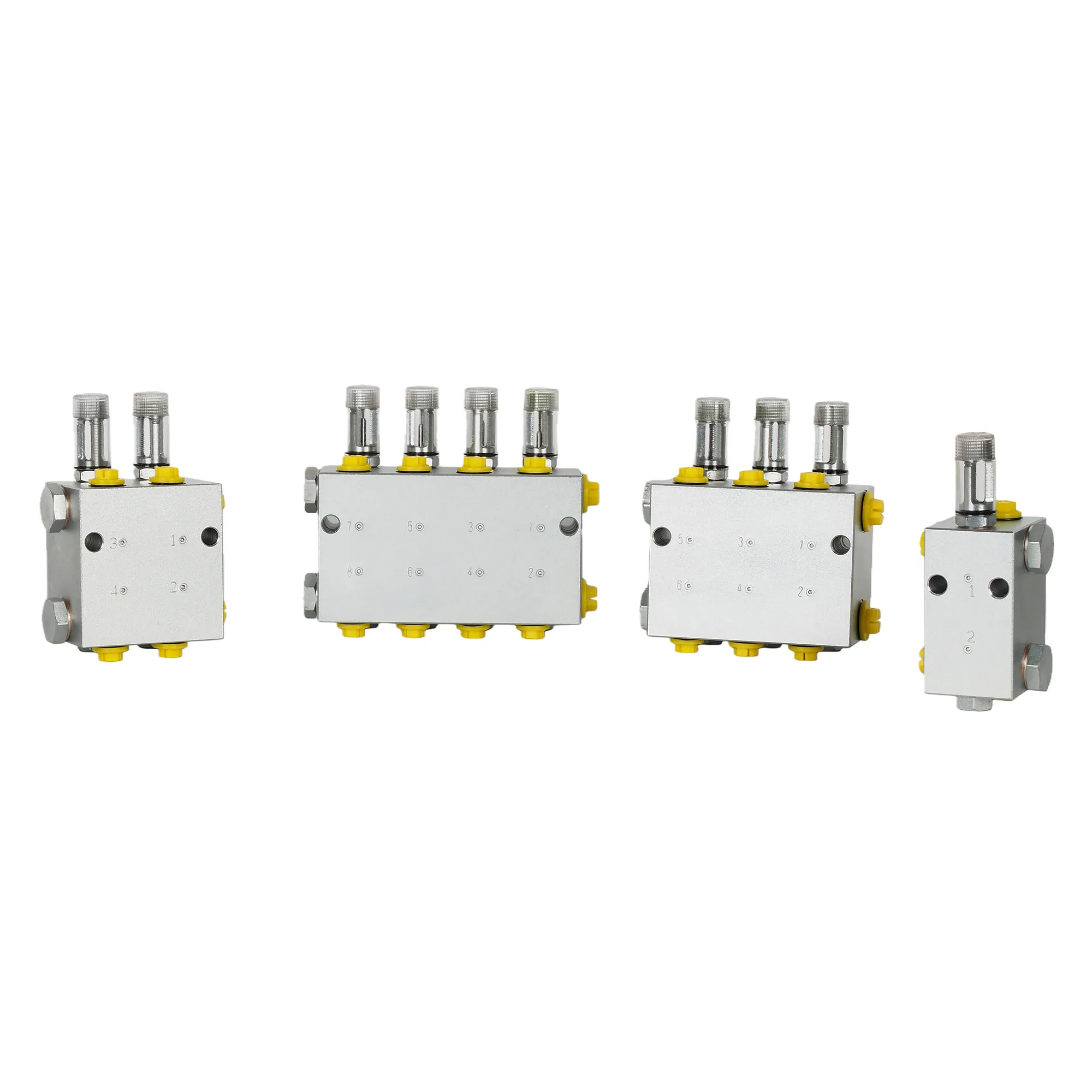

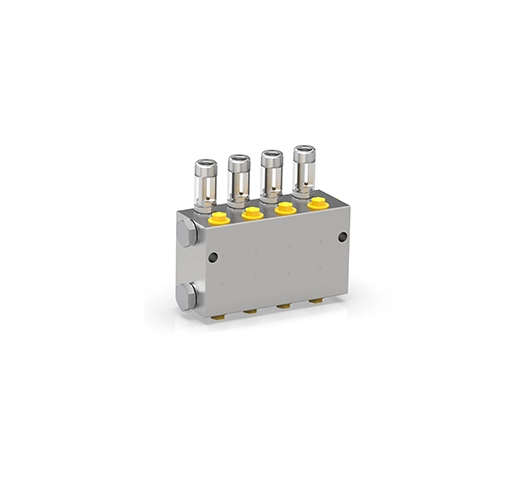

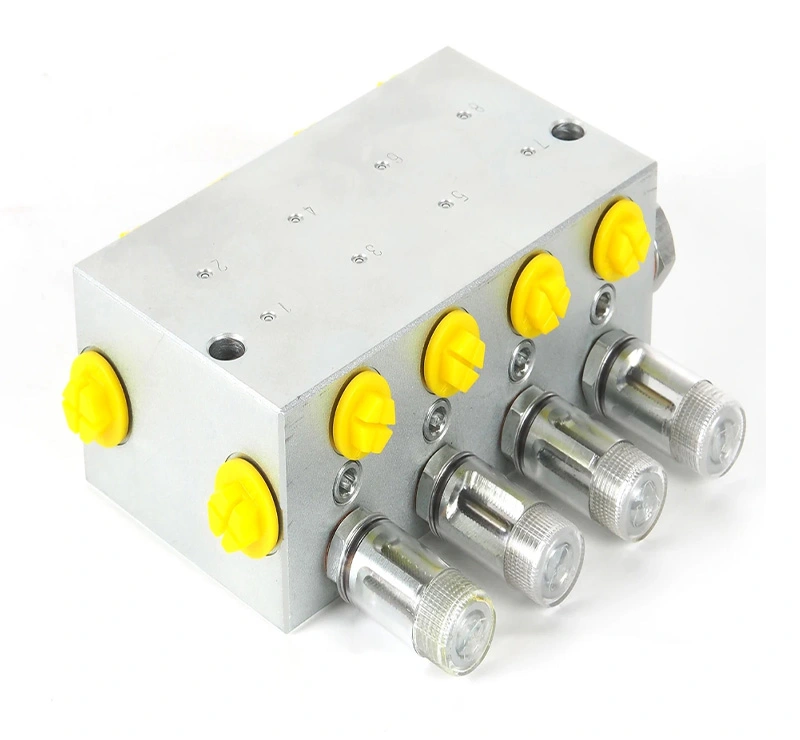

DSG Dual-line Grease Metering Devices
The durable, galvanized steel DSG grease metering devices are designed for dual-line systems with pressures of up to 400 bar (5 800 psi). These metering devices are available with up to eight outlets, and each pair of outlets is equipped with an indicator pin for visual monitoring. Also, the DSG grease metering devices are available with low-wear proximity switches, or piston detectors, for electrical monitoring. Additional features include rust-resistant material.
Technical Information of DSG Dual-line Grease Metering Devices
Technical data | |
Outlets | 2-8 |
Operating temperature | Max.120℃ |
Operating pressure | Max. 400bar, 5800psi |
Discharge | 0~2.2ml/cyc（adjustable） fixed output：0.55, 1.1, 1.65, 2.2ml/cyc |
Lubricant | NLGI 0#-3# |
inlet thread | G3/8 |
Outlet thread | G1/4 |
| Materials | steel galvanized |
| Lubrication systems | dual line lubrication systems |

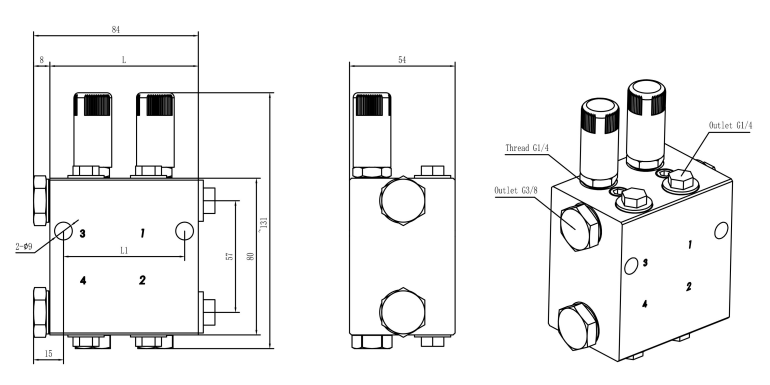

Technical Drawing of DSG Dual-line Grease Metering Devices
| Outlet Number | L1(mm) | L(mm) |
| 2 | 30 | 44 |
| 4 | 62 | 76 |
| 6 | 94 | 108 |
| 8 | 126 | 140 |
Characteristics of DSG Dual-line Metering Devices
Easy cross-porting with external screw to combine
Solid-block construction for durability and error-free exchange
Operates effectively in a wide range of temperatures
Easy to monitor
Cisolube offers custom grease distributor with wide selections, Contact now.
