Lubrication Parts
We provide a comprehensive range of lubrication parts for our lubrication system products, ensuring optimal performance and longevity. Our offerings include high-pressure flexible pipes for efficient fluid transfer, push-in fittings for secure connections, and straight fitting assemblies for easy installation. These components are designed with precision and durability in mind, ensuring seamless operation of your centralized grease lubrication system. With our high-quality parts, you can enhance the efficiency of your machinery, reduce maintenance costs, and improve overall productivity.
Specification of Lubrication Parts
| Description | Part number | Oil drum |
| Follower Plate | 95660C | 16KG |
GT PLUS Pumping Element
| Part number | OD | Rated flow |
| 80536 | 6mm | K6; 4ml/min |
| 80537 | 7mm | K7; 5ml/min |
GM Pumping Element
| Part number | OD | Rated flow |
| 88535 | 5mm | P5; 3.3ml/min |
| 88536 | 6mm | P6; 4ml/min |
Safety Valve
| Part number | Pressure | Male thread |
| 5FI05 | 207bar/3000psi | M10*1 |
| Part number | Description | Male thread |
| 5FI07 | 275bar/4000psi | NPT1/8 |

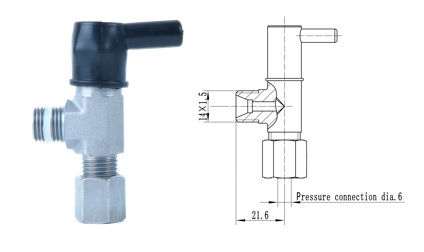

| Part number | OD | Male thread | Pressure |
| 5FJ01 | φ6 | M14*1.5 | 345bar/5000psi |
Straight Fitting Assembly
| Part number | OD | Thread | Material |
| 5DM0602 | Ø6 | R1/8 | Zinc plated |
| 5DM0610 | Ø6 | M10*1 | Zinc plated |
| 5DM0608 | Ø6 | M8*1 | Zinc plated |
| 5DM0606 | Ø6 | M6*1 | Zinc plated |
| 5DM0402 | Ø4 | R1/8 | Zinc plated |
| 5DM0410 | Ø4 | M10*1 | Zinc plated |
| 5DM0408 | Ø4 | M8*1 | Zinc plated |
| 5DM0406 | Ø4 | M6*1 | Zinc plated |
| Part number | OD | Thread | Material |
| 5PM0602 | Ø6 | NPT1/8 | Nickel-plated steel |
Hose Coupling Straight
| Part number | A | B | C | D | Material |
| ZZ06 | Ø6 | 60 | 30 | M7*1 | Zinc plated |
| ZZ06-1(Short) | Ø6 | 54.5 | 21.5 | M7*1 | |
| ZZ0610 | Ø6 | 63 | 30 | M10*1 | |
| ZZ08 | Ø8 | 63 | 30 | M10*1 |
Threaded Sleeve
| Part number | OD | Thread | Material |
| WO06 | Ø6 | M7*1 | Zinc plated |
| WO08 | Ø8 | M10*1 |

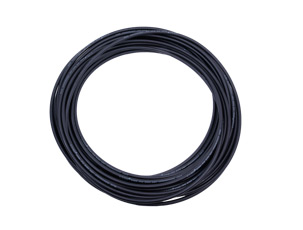

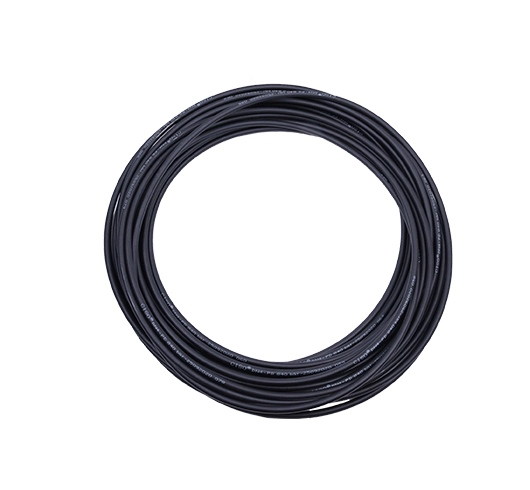

High-Pressure Flexible Pipe
| Part number | Outer diameter | Inside diameter |
| T-HP03 | Ø6 | Ø3 |
| T-HP04 | Ø8.6 | Ø4 |
| T-HP06 | Ø11 | Ø6.3 |
