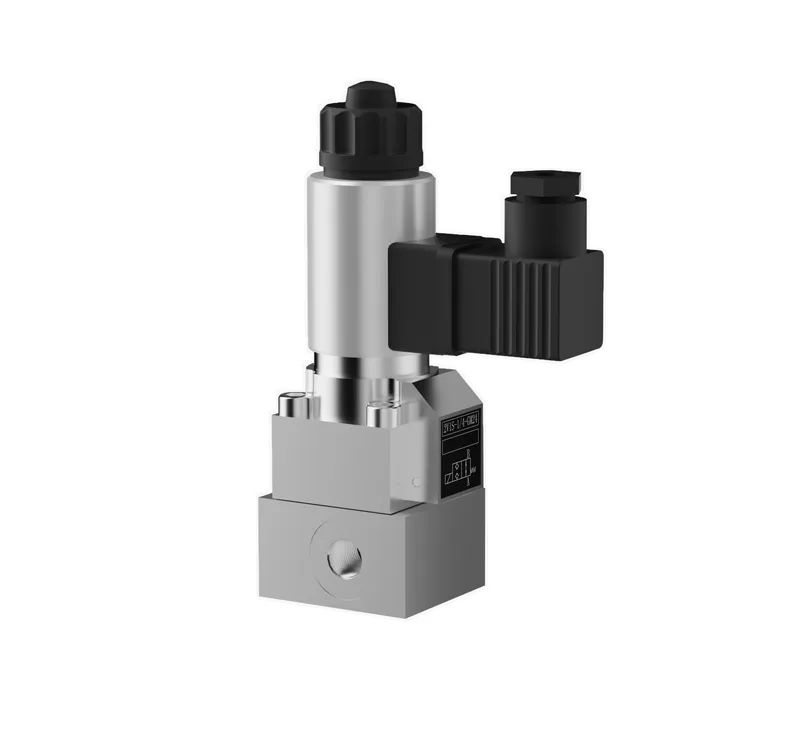

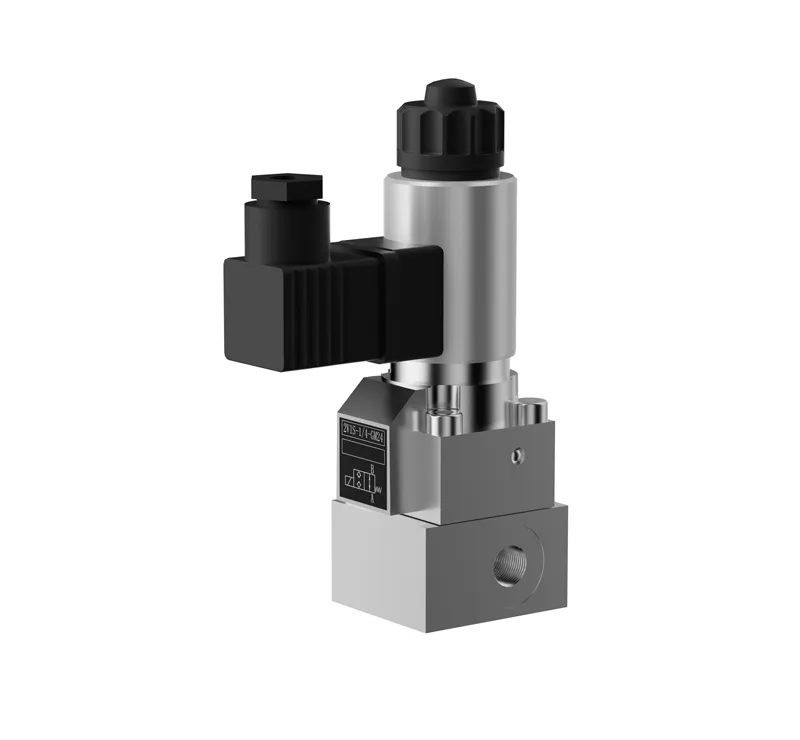

CSV Solenoid Valve
CSV electrically controlled valve is used as a control element that serves to separate and Conner the self-standing parts of branched lubricating and hydraulic circuits that operate with oil and plastic grease. In conventional valves the grease has a trend to stick in here and cause a blockage. CSV valve construction precedens and prevents this phenomenon.
CSV solenoid valve is suitable for all types of central lubrication systems, which allows increasing the variability of functional modes of more complicated control circuits with externally controlled separation and connection of branches that require different rates of lubrication.
Technical Information of CSV Solenoid Valve
TECHNICAL DATA | |
Maximum working pressure | 400 bar |
Maximum lubrikant flow | 15 000 cm³/min |
Description | valve 2/2, NC (normally closed) or NO (normally opened), valve 3/2, valve 4/2 NC or NO |
Nominal operating voltge | 24V DC, 110V AC, 230V AC, 50/60Hz |
Inlet and outlet pipe union | G1/4", G1/2", G3/8", G3/4" |
Lubricant | oil, grease max. NLGI-2 |
Technical Drawing of CSV Solenoid Valve

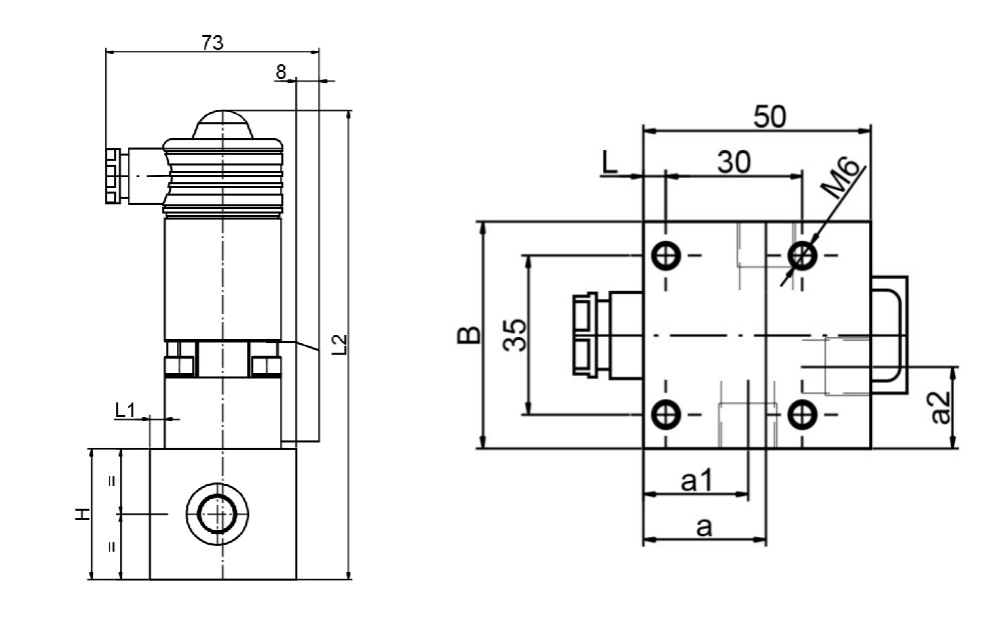

CSV-R、S、Z:
Dimensions（mm)

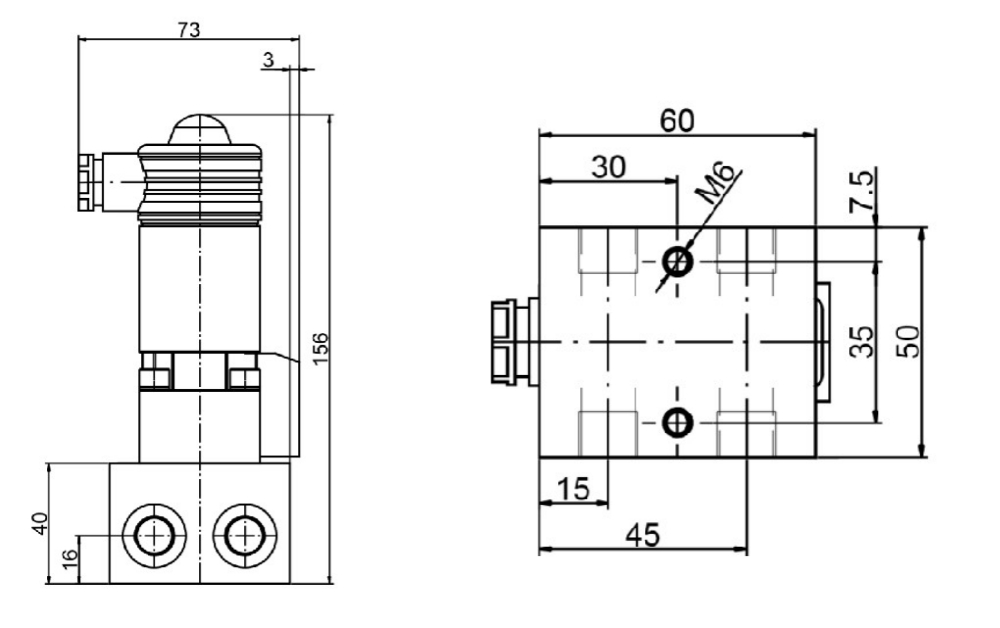

CSV-G:
Dimensions（mm)

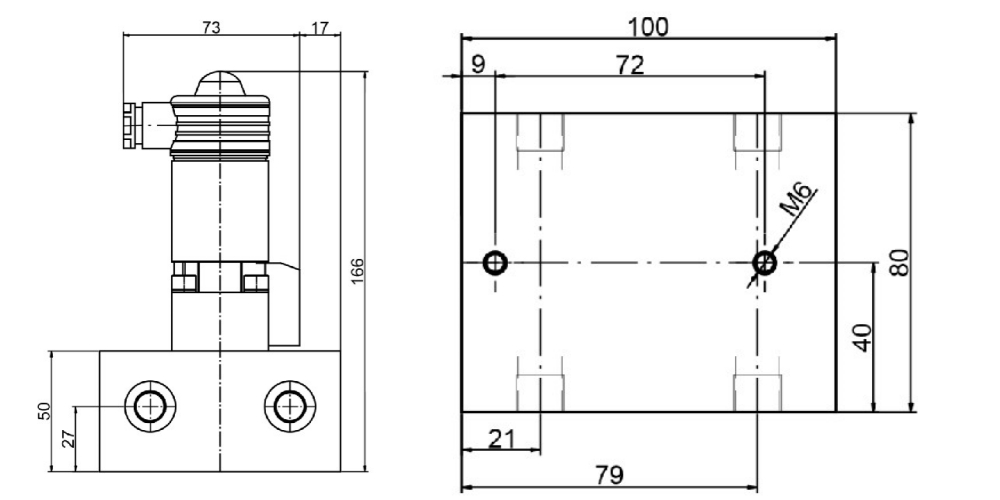

CSV-W:
Dimensions（mm)
CSV Solenoid Valve Operating Principle
The solenoid valve is a valve of which the control element is an electromagnet which moves through the coil when changing the electrical signal the valve to the open position or closed, which is opened or closed by the flow of working medium through the valve in lubrication and hydraulic circuits.
The solenoid valve is a valve, of which the control element is an electromagnet, which by means of the coil moves at the change of the electrical signal the valve to the position open or closed, through the valve in the lubricating or hydraulic circuits.
The valve may be in the basic position (without an electrical signal) open (NO) or closed (NC).
Characteristics of CSV Solenoid Valve
Unique structure prevents grease from congealing
Rapid response
Easy maintenance
