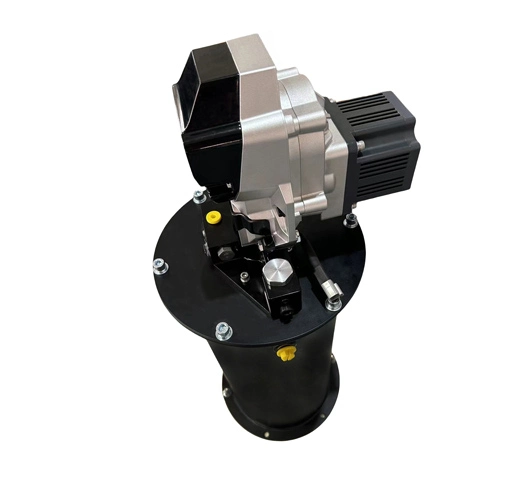

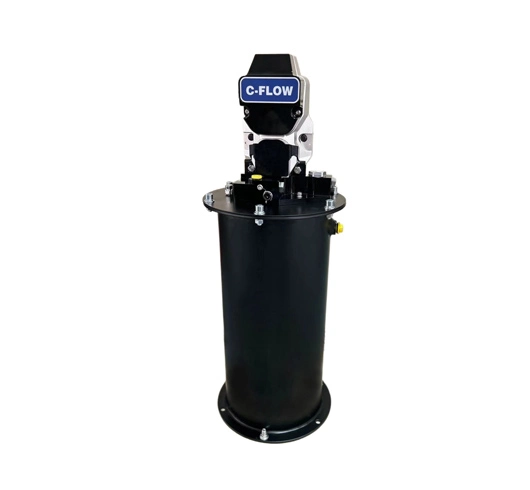

C-FLOW Single Line Lubrication Pump
The C-FLOW Compact Electric Lubrication Pump is a plunger pump characterized by a rugged, durable pump body, high displacement, and small size for easy installation. The motor is a brushless motor with low noise, low maintenance cost and longer service life.
Technical Information of C-FLOW Single Line Lubrication Pump
Relief valve port
Technical Information | |
Operating pressure | Max 241bar |
Operating temperature | -40℃ - 65℃ |
Electrical connection | 24VDC |
Rated Current | 11.9A |
Rarted flow | Max 74ml/min |
Reservoir Capacity | 12L（With reservoir ） 20L（ With reservoir ） 35 lb（Without reservoir，use the original lubricant bucket） 27KG（Without reservoir） 41KG（Without reservoir） |
Material | Carbon Steel、Stainless Steel |
Outlets | 1 |
Relief valve port | 1/2″ Thread |
Inlet port | Push-in fittings |
Technical Drawing of C-FLOW Single Line Lubrication Pump

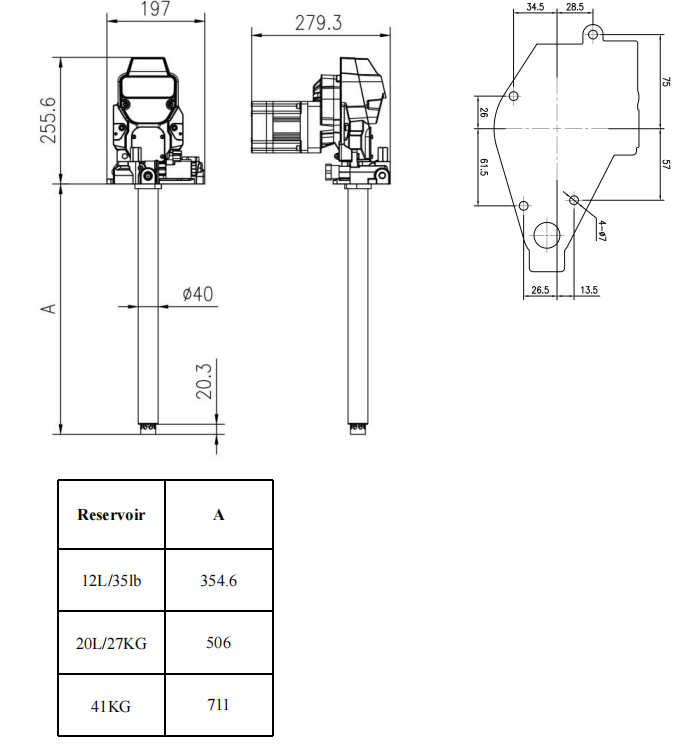

Standalone pump, without oil tank（mm）

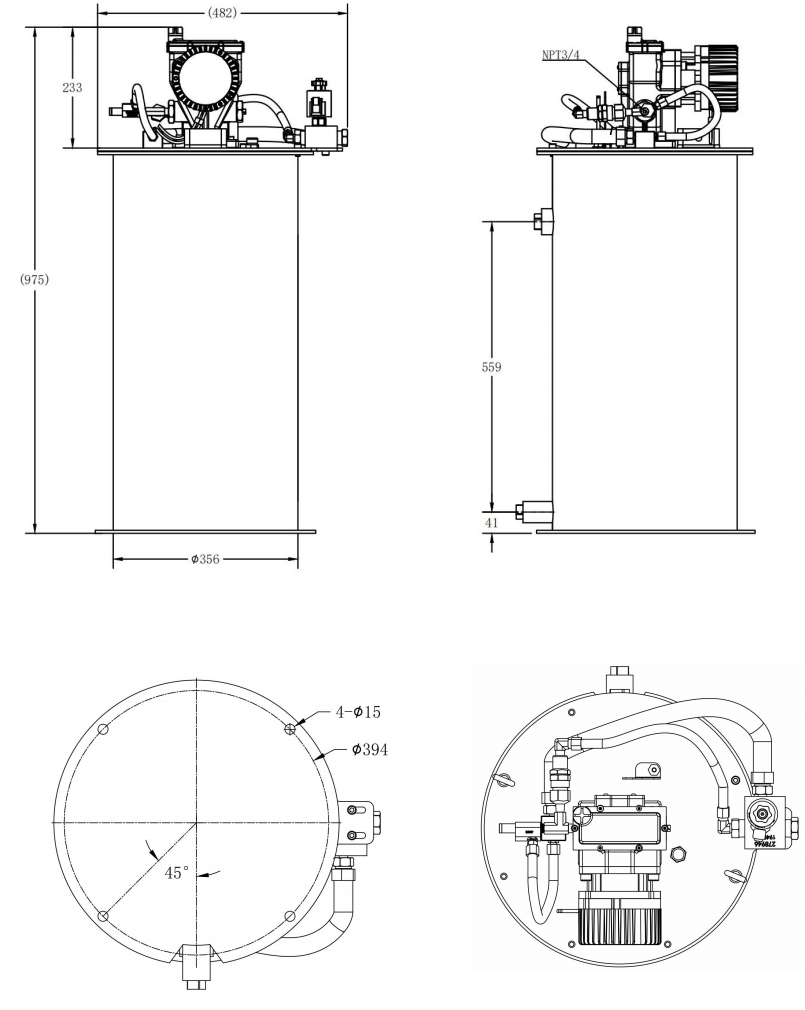

With tank dimensions(mm)
Characteristics of C-FLOW Single Line Lubrication Pump
Metal structure, durable and long-lasting product that reduces machinery downtime for maintenance
Advanced brushless DC motor
Can be equipped with pressure and level sensors real-time monitoring
Cisolube offer custom lubrication pumps with a wide selection, Contact now!
