Agricultural Machinery Lubrication System
High-efficiency and reliable lubrication systems are essential to ensure continuous and stable operation of agricultural machinery under harsh conditions. Modern agricultural equipment often works under high loads, dusty, and humid environments. Without proper lubrication, mechanical components are prone to accelerated wear and unexpected downtime.
CISOLUBE provides complete automatic lubrication system solutions for agricultural machinery, ensuring every lubrication point receives accurate supply of lubricants. The system effectively reduces maintenance time, prevents unexpected failures, and significantly improves operational efficiency.
Grease Lubrication Systems For grease lubrication, CISOLUBE has specially designed GT PLUS, GP203, and GM lubrication pumps. They feature robust construction, high protection levels, and easy maintenance, providing stable grease supply even under harsh conditions.
Oil Lubrication Systems For light oil lubrication, the company has developed EM2, PMV, and PMN lubrication pumps. These pumps provide precise and continuous oil delivery, ideal for chain lubrication in agricultural machinery, ensuring all moving components receive clean and efficient lubrication protection.
Benefits of CISOLUBE Automatic Lubrication Systems By integrating CISOLUBE automatic lubrication systems, agricultural machinery users can reduce downtime, lower maintenance costs, and significantly extend equipment life, enabling efficient year-round operation.
Products of Agricultural Machinery Lubrication System
EM2 Oil Lubrication Pump
The EM2 oil lubrication pump is a compact unit specially designed for applications with limited installation space. Its small size makes it an ideal solution for providing centralized lubrication protection in compact machinery.
PMV Chain Lubrication Pump
The PMV is a multi-point piston pump, driven by a cam system and engineered to supply multiple independent lines, with a maximum capacity of 12 outlets. Known for its durability and dependability, it is especially appropriate for lubrication systems situated in challenging environments.
PMN Chain Lubrication Pump
The PMN lubrication system, composed of a 4 or 7 litre reservoir with a suction filter, metering components, and brushes, allows for the adjustment of each lubrication point by modifying the metering parts. The volume can be preset, and the system’s total oil output can also be adjusted by the stroke of the PMN plunger motion.
GT PLUS Progressive Auto Lubrication Pump
The GT pump is a piston pump designed to function optimally with up to five pumping units. Its design is especially compatible with progressive or single-line systems.
GM PLUS Progressive Auto Lubrication Pump
The GM piston pump is designed to efficiently operate with up to five pumping units. Its design is particularly well-suited for progressive systems or single-line systems, allowing for five independent lines to be lubricated simultaneously.
GP203 Lubrication Pump
The GP203 is a high pressure plunger pump with up to three plunger pairs and is designed to lubricate up to 150 points by combining the features of a progressive and multi-point lubrication system.
VSD Oil Distributor Block
The VSD oil distribution manifold blocks accurately distributes grease or oil from the lubrication pump to each lubrication point according to a preset ratio, ensuring uniform and reliable lubrication for all moving components.

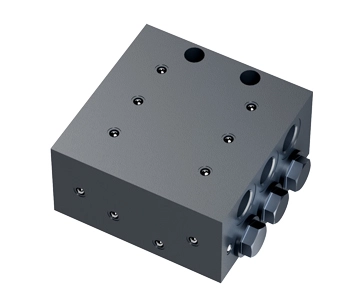

DSP Distributor Valve
The DSP is a compact, single block progressive divider valve, perfect for applications with space constraints.
DXF Progressive Distributor Valve
DXF distributor is composed of three elements, at least a first block, a middle block and an Tail block, can provide 3 to 24 lubrication point of lubrication. There are many sizes of displacement to choose from. Each oil outlet can be carried out in parallel, double oil quantity increase.
VSP Distributor Valve
The VSP modular distributor valve guarantees precise lubrication and is ideal for all types of challenging conditions, making it an excellent solution for lubricant distribution.
Oil Tank
A lubrication oil tank is a storage container for lubricating oil used in machinery and equipment. It’s a key component in reducing friction and ensuring smooth operation of machinery.
Chain Lubrication Brushes
Chain lubrication brushes are tools used to evenly apply lubricant to chains, reducing friction and prolonging the chain's lifespan.
Application of Agricultural Lubrication Systems

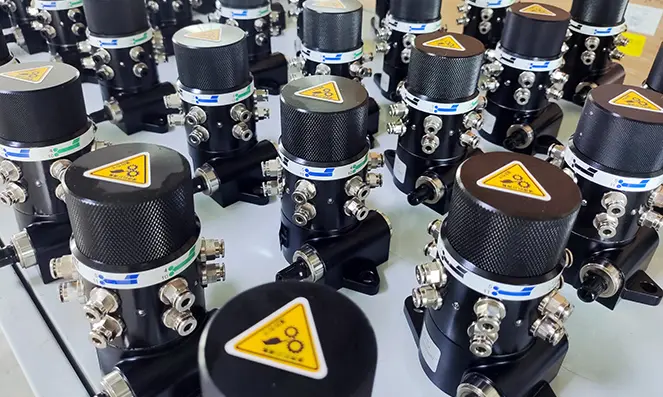

Features of Agricultural Lubrication Systems
- Install once, benefit long-term
- Continuous operation during peak seasons, improving efficiency
- Low maintenance cost, precise lubrication
- Smoother operation of key components, more durable
- Dustproof and waterproof, suitable for harsh working conditions
- Compatible with grease and oil for various agricultural machinery

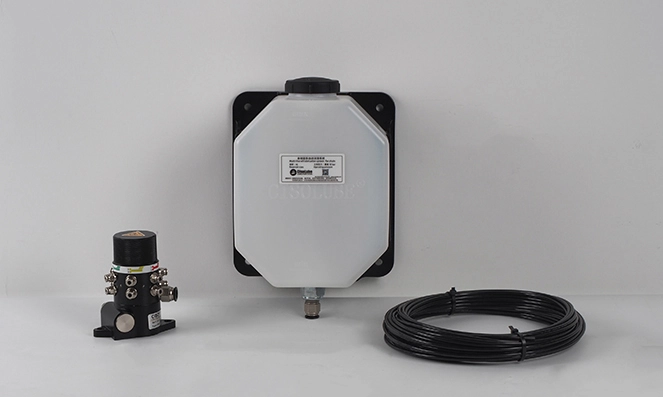

Principle of Agricultural Automatic Lubrication Systems
Automatic lubrication systems for agricultural machinery deliver oil or grease automatically, periodically, and in precise amounts while the equipment is running. Lubrication pumps driven electrically or mechanically deliver lubricants through distributors or pipes to each lubrication point, keeping bearings, chains, gears, and other critical components well-lubricated, reducing wear and extending service life. A controller governs the lubrication cycle intervals and duration, ensuring each point receives the right amount of lubricant at the right time.

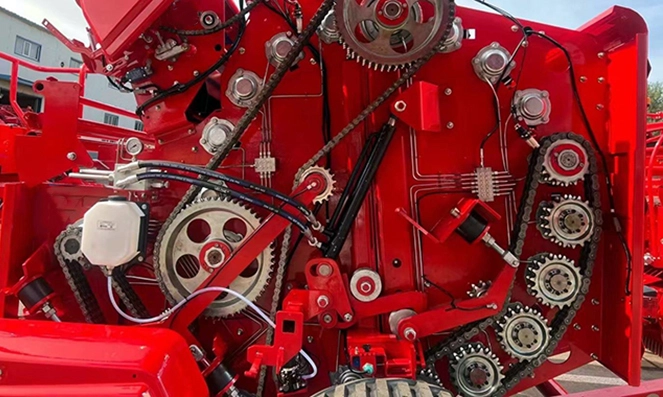

Agricultural automatic Lubrication Systems Industries

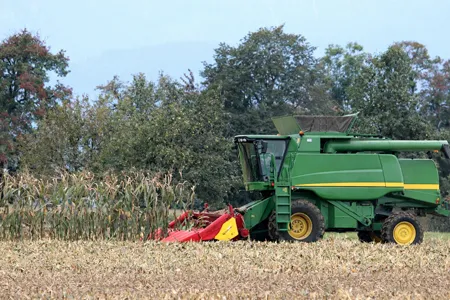

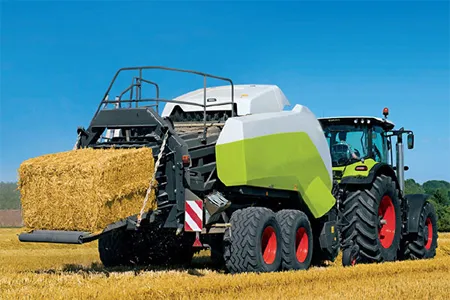

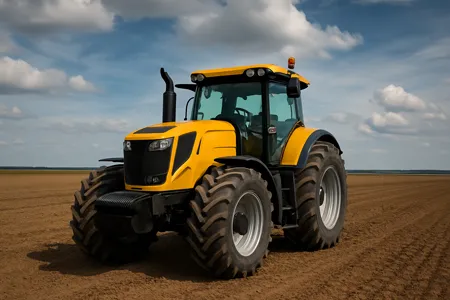

CISO agricultural lubrication systems are widely used across a broad range of agricultural and related industries. Common applications include tractors, combine harvesters, balers, planters, sprayers, and forage harvesters. Beyond traditional farming, these systems are also deployed in forestry machinery, construction equipment operating in agricultural settings, and irrigation systems. Any machinery with multiple lubrication points operating in dusty, wet, or high-load environments can benefit from CISO's automatic lubrication solutions.
Progressive lubrication systems vs single line lubrication systems vs dual line lubrication systems vs chain lubrication systems
| Feature | Progressive Lubrication Systems | Single-Line Lubrication Systems | Dual-line Lubrication Systems | Agricultural Machinery Lubrication System |
|---|---|---|---|---|
| Definition | Progressive lubrication system is an efficient lubrication system used for mechanical equipment, providing lubricant progressively to different parts of the equipment to ensure each part receives an adequate amount of lubrication. | The lubrication pump automatically delivers lubricant to the lubricant dispenser via a single supply line. Each dispenser serves only one lubrication point and can be adjusted to provide the exact dose of grease or oil required. | Dual-line systems can be used on large systems with dispersed lubrication points that require varying lubrication quantities. These systems utilize two main lines that are supplied alternately with lubricant from a high-pressure pump. | An automatic lubrication system for agricultural machinery is an intelligent system that provides quantitative and timed lubrication to key components of agricultural machinery. Through a lubrication pump and distribution device, it precisely delivers grease or lubricating oil to each friction point, ensuring stable operation of the equipment even under high loads, dusty, and humid environments. |
| Basic Components |
|
|
|
|
| Working Principle | The lubricant is pumped through the main lines to the progressive distributor with the pump. The lubricant is delivered "progressively" to the friction point. The circulation of a progressive distributor is monitored optically or electrically. | The dosing values are impinged on the main line with the pump – dynamically operating metering valves with a pressure surge, static operating dosing elements with slow pressure build-up. These thus transfer the respective quantity of the lubricant to the friction point. During the following relief phase, the lubricant is restacked in the dosing valves for the next lubrication process. | CISO dual-line systems can be used on large systems with dispersed lubrication points that require varying lubrication quantities. These systems utilize two main lines that are supplied alternately with lubricant from a high-pressure pump via a change-over valve at up to 400 bar (5,800 psi). Branch lines, along the main lines, are connected with dual-line metering devices to supply a large volume of lubricant to the lubrication points. Within large dual-line systems, end-of-line pressure switches are used to control and monitor the system. | Automatic lubrication systems for agricultural machinery deliver oil or grease automatically, periodically, and in precise amounts while the equipment is running. Lubrication pumps driven electrically or mechanically deliver lubricants through distributors or pipes to each lubrication point, keeping bearings, chains, gears, and other critical components well-lubricated, reducing wear and extending service life. |
| Advantages |
|
|
|
|
