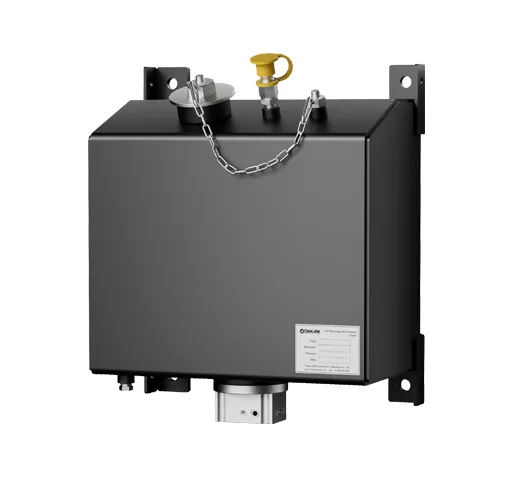

AOP Wheel flange lubrication pump
The pump operates by metering homogenized lubricant, with the volume pre-set at the pump unit. Using compressed air as the transport medium, it delivers the lubricant through flow distributors to the spray nozzles, where it is evenly applied to the wheel flange. The system requires only a single line to convey both lubricant and compressed air.
When flow conditions in the outlet lines are similar, the air-lubricant mixture is divided equally within the flow distributor. The complete system consists of a tank, a plunger pump, flow distributors, and corresponding spray nozzles. All moving components are integrated into the lubrication module, facilitating easy access and replacement. Since neither the flow distributors nor the spray nozzles contain moving parts, maintenance time and costs are significantly reduced.
Technical Information of AOP Wheel flange lubrication pump
| TECHNICAL DATA | |
Compressed air supply | max.10bar |
Service air pressure | 6~10bar |
Standard reservoir capacity | 11 litres (other sizes upon request) |
Lubricant volume metered by the pump | 0.05、0.10、0.20、0.40ml / spraying pulse |
Duration of spraying cycles | adjustable |
Type of lubricants | oil or fluid grease (also biodegradable) |
Main supply | 24V |

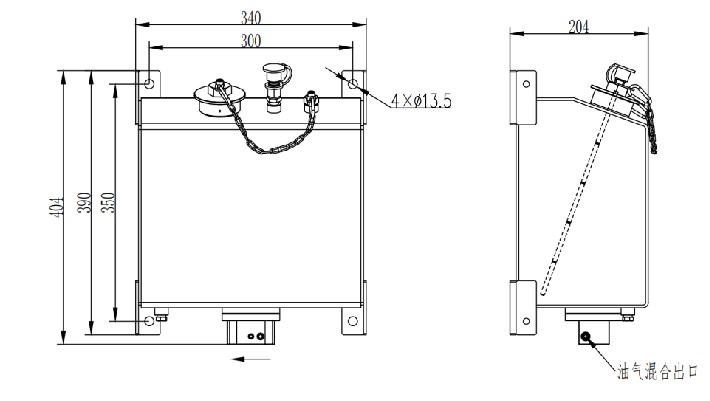

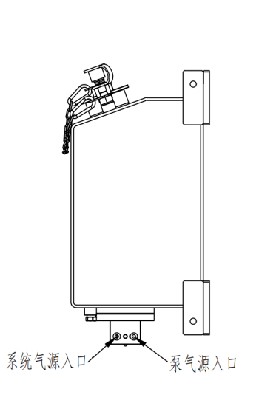

Dimensions(mm) of AOP Wheel flange lubrication pump
Features and Benefits of AOP Wheel flange lubrication pump
Compact design for easy installation
Reduces operating costs, extends equipment service life, and minimizes wheel reprofiling needs
Environmentally sustainable with lower noise emissions during operation
Reduces material wear
Saves up to 6% in traction energy consumption
Applications of AOP Wheel flange lubrication pump
Urban rail transit
Regional trains
Intercity trains and
locomotives
