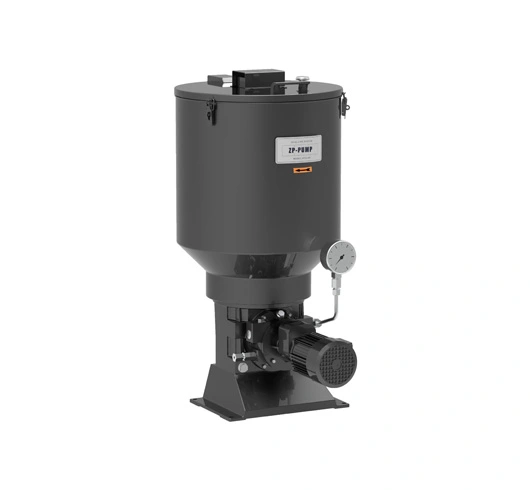

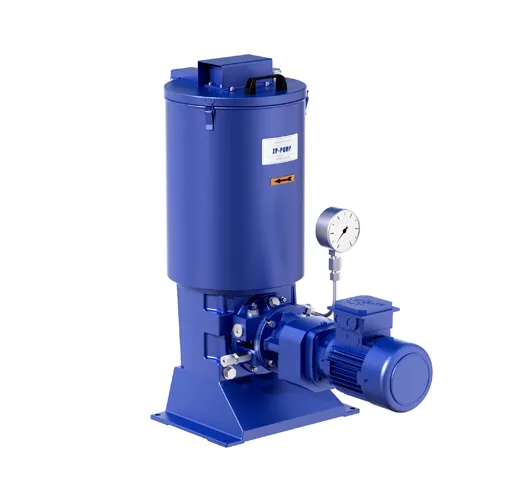

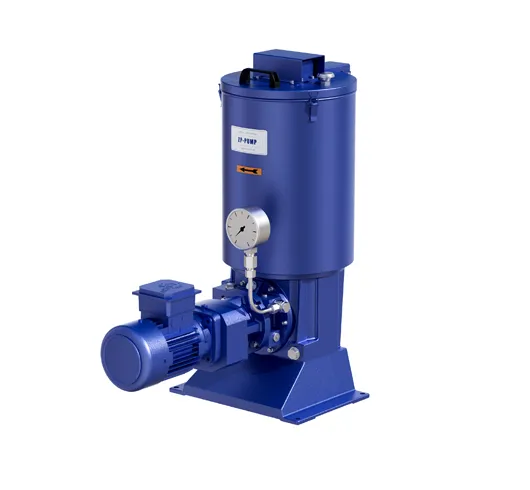

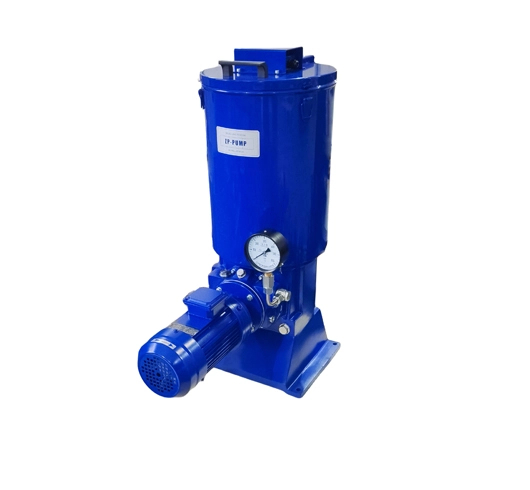

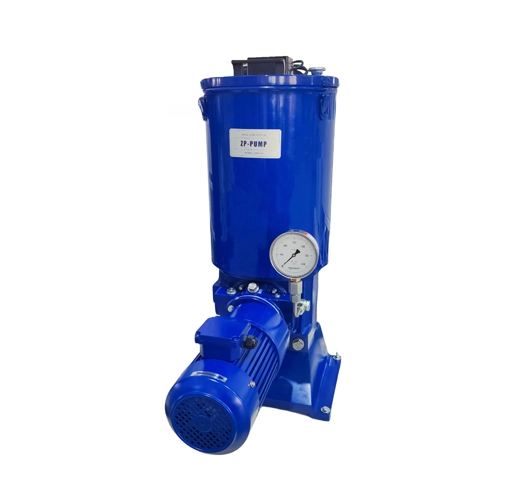

ZP08/14/24 Lubrication Pump
The ZP08/14/24 pumps are used primarily in dual-line systems or as supply pumps and have a maximum operating pressure of 400 bar (5 800 psi). Depending on the system layout, these electric pumps can supply lubricant at distances of up to 100 meters and more Available with a 40, 60 or 100 L reser voir, the pressure ZP08/14/24 pumps come standard with a pressure relief valve, check valve, lubricant filter and a pressure gauge.
These robust units operate effectively at temperatures ranging from –20 to +80℃ thanks to the integrated stirring device.
Technical Information of ZP08/14/24 Lubrication Pump
Model number | Pressure | Rated fuel feed (ml/h) | Reservoir (L) | Gear motor | |
Motor power (kw) | Voltage(V) | ||||
ZP08 | 40Mpa | 8 000 | 40 60 100 | 0.37 | 380 |
ZP14 | 14 000 | 0.55 | |||
ZP24 | 24 000 | 1.1 | |||
Applicable medium is grease (NLGI0#-2#) with needle penetration not less than 265 (25℃, 150g) 1/10mm | |||||
| dual line lubrication systems | |||||

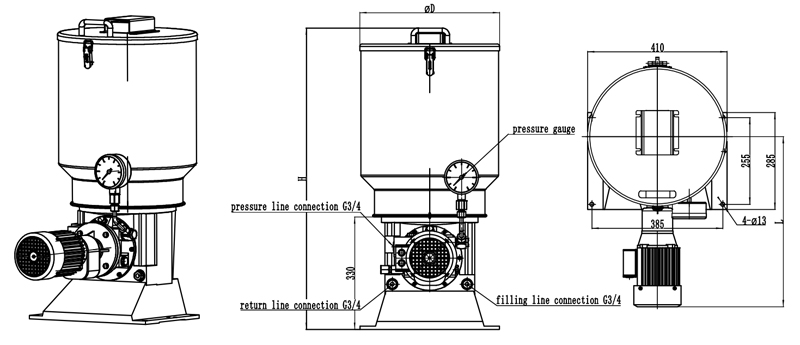

Technical Drawing of ZP08/14/24 Lubrication Pump
Specification | Dimensions(mm) | ||||
D | Hmax | Hmin | L | ||
Reservoir | 40L | 325 | 810 | 760 | 510 |
60L | 410 | 890 | 840 | 530 | |
100L | 510 | 1100 | 975 | 575 | |
Characteristics of ZP08/14/24 Lubrication Pump
Reliable
Simple to service
Three options for high lubricant output
Ultrasonic low- and high-level control options
Built-in lubricant filter
Cisolube offer custom lubrication pumps with a wide selection, Contact now!
