Yantai Ciso Lubrication Technology Co., Ltd.

LUBESTAR Hydraulic Pump

The high-performance Lubestar hydraulic pump combines a rotary drive pump motor and reciprocating pump lines with flexible control functions to operate in hot deserts and cold Arctic temperatures. The integrated control unit regulates the lubricant quantity and operating pressure. The pump output can be adjusted from 115 to 737 cm³/min.


Ordering information



Part numberDescriptionReservoirSolenoid manual overrideAdjustable flow controlAdjustable pressure control
E5722pump and bucket with follower and low- level detection27KG/60LB-
E5723Pump and reservoir27KG/60LB---
E5725pump and bucket with follower and low- level detection41KG/90LB-
E5726Pump and reservoir41KG/90LB--
E5727Pump and bucket with follower, low- and high-level detection, mechanical shut-off device and reservoir54KG/120LB-
E5731Pump16KG/35LB-
E5732Pump27KG/60LB-
E5733Pump41KG/55KG/90LB/ 120LB-
E5734Pump180KG/400LB-
E5735Pump27KG/60LB---
E5741Pump27KG/60LB--
E5742Pump41KG/55KG/90LB/ 120LB--



Technical Data
Functional principleHydraulic piston pump
No. of output Port1
Adjustable flowrateMax. 737 cm³/min      Min. 115 in³/min
Supply inlet pressureMax. 200Bar
Operating inlet pressure20~32 Bar
Operating temperature-29℃ ~ 65℃
Solenoid valve coil24VDC
Tank capacity27、41、 55 kg
Output Port1/4NPTF
Installation Methodvertical
MaterialFluororubber, polyurethane, steel, aluminum_x0002_zinc castings

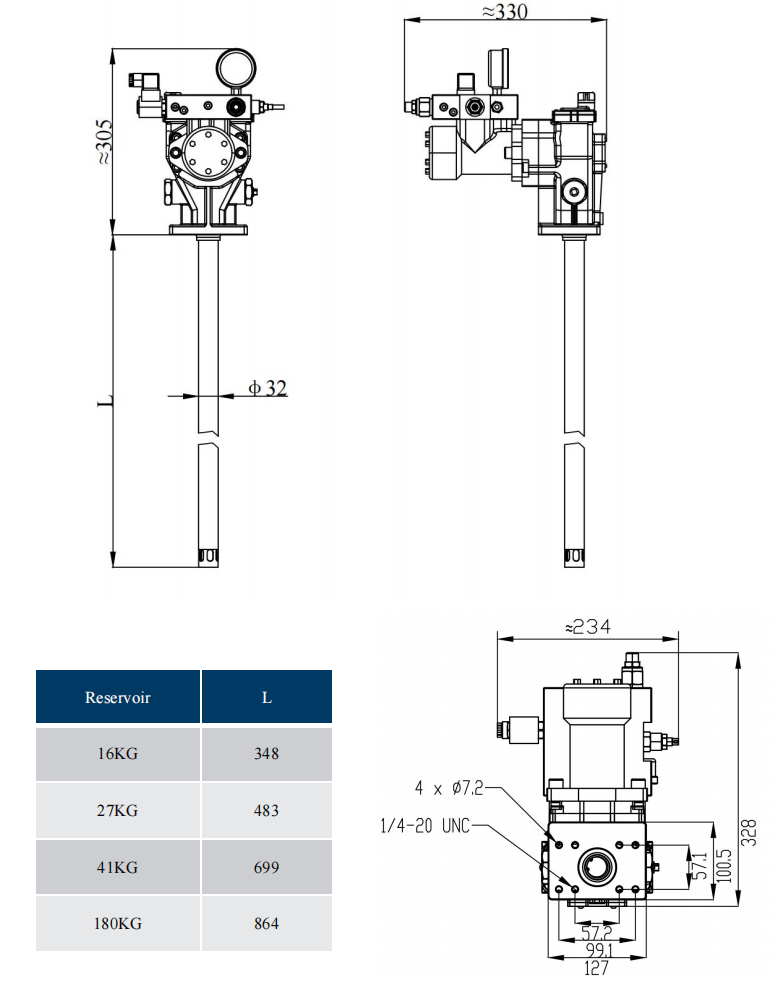

Standalone pump, without oil tank( mm)




ReservoirL
16KG348
27KG483
41KG699
180KG864



With tank dimensions(mm)

ReservoirL
27KG508
41KG742



Characteristics of LUBESTAR Hydraulic Pump


  • Extends pump life and simplifies pump installation, operation and service

  • Pump and tank combination models with automatic level sensor and direct shut-off system

  • The preferred pump for single-line parallel lubrication systems

  • Flexible range with options for pump only or pump and tank with follow- up high and low level detection

  • Suitable for hot deserts and cold climates


 Cisolube offer custom lubrication pumps with a wide selection, Contact now!



Applications

  • Construction machinery

  • Mining machinery and mining vehicles

  • Metallurgy

  • Steel mills

  • Paper mills

  • Food and beverages
