Compact and versatile, its unique rotary drive and modular gear set let you adjust the speed of the pump's motor to exactly fit your application.
Advanced technology: brushless DC motor
Optional overflow prevention system to improve worker safety and minimize environ- mental concerns caused by overfilling
| Part number | Description | Power | Reservoir | Ratio | Operating pressure max. |
| E5479 | pump,follwer,bucket,cover,hardware | 24V | 16KG/35LB | 0.792361111 | 170bar; 2500psi |
| E5728 | Pump and reservoir | 24V | 27KG/60LB | 0.792361111 | 345bar; 5000psi |
| E5729 | Pump and reservoir | 24V | 41KG/90LB | 0.792361111 | 345bar; 5000psi |
| E5730 | Pump and reservoir | 24V | 55KG/120LB | 0.792361111 | 345bar; 5000psi |
| E5736 | Pump | 24V | 16KG/35LB | 0.792361111 | 345bar; 5000psi |
| E5737 | Pump | 24V | 27KG/60LB | 0.792361111 | 345bar; 5000psi |
| E5738 | Pump | 24V | 41KG/90LB 55KG/120LB | 0.792361111 | 345bar; 5000psi |
| E5739 | Pump | 24V | 180KG/400LB | 0.792361111 | 345bar; 5000psi |
• Max.Operating pressure: Max. 345Bar
• Output rate：Max. 103ml/min Min. 6.3ml/min
• Reservoir Capacity：27KG/60LB、41KG/90LB、 55KG/120LB
• Material：Carbon Steel、 SS
• Voltages：24VDC
• Operating temperatures：-40℃ ~ 65℃

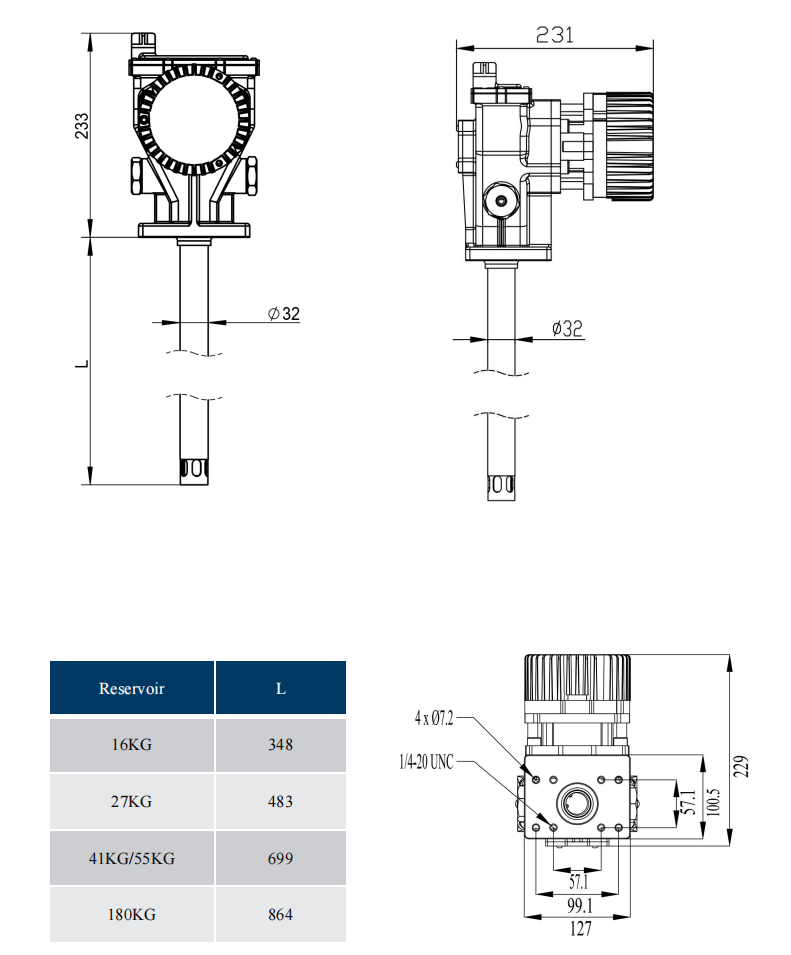

| Reservoir | L |
| 16KG | 348 |
| 27KG | 483 |
| 41KG | 699 |
| 180KG | 864 |
| Reservoir | L |
| 27KG | 508 |
| 41KG | 742 |
