Yantai Ciso Lubrication Technology Co., Ltd.

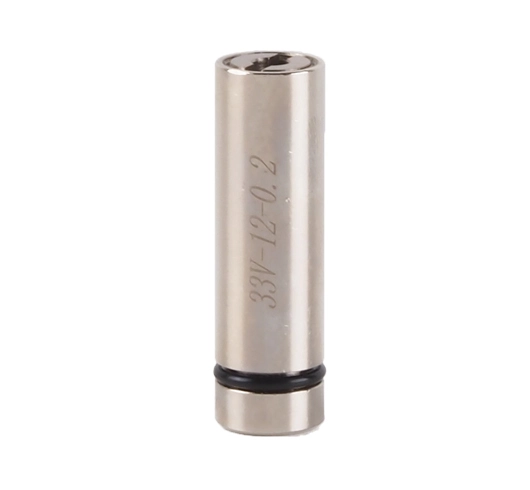

33V Metering Valves

Action pressure:  ≧1.5MPa

Back pressure:  ≦0.5MPa

Standard outlet: 4mm

temperatures: -40-90℃


The 33V Metering Valves are designed to function efficiently under specific conditions. They operate at an action pressure of at least 1.5MPa and can withstand a back pressure of up to 0.5MPa. These valves come with a standard outlet size of 4mm and can operate in temperatures ranging from -40 to 90 degrees Celsius.


Technical Information of 33V Metering Valves


Type

Output

Part number

Tube fitting

0.06ml

33V1206

0.1ml

33V1210

0.2ml

33V1220

Lubrication systemsingle line lubrication system


Technical Drawing of 33V Metering Valves

33V Metering Valves

Ordering information:

TypeOutputPart number
Tube fitting0.06ml33V1206
0.1ml33V1210
0.2ml33V1220


Cisolube offers custom grease distributor with wide selections, Contact now.
