MC-III Controller
MC-III. External Controller Can be used in progressive and single-line lubrication systems with resistance Compact, compact housing with a small footprint, easy installation, and a wiring harness that can be connected directly to the controller.
Technical Information of MC-III Controller
Technical data | |
Power DC | 9 - 30VDC |
power consumption | 1W |
Maximum switching voltage | 30VDC |
| Maximum switching current | 2A（DC） |
| Ingress protection | IP54 for indoor and compartment use |
| Enclosure coatings | ABS |
| Operating temperature range | -40°C to 80°C |

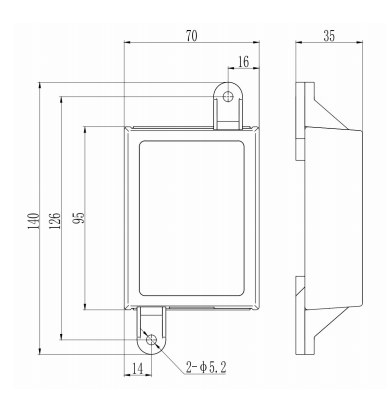

Technical Drawing of MC-III Controller
Dimensions (mm)
Characteristics of MC-III Controller
It has a digital display function for quick identification of system status
LED displays easily recognizable error codes
With alarm tone
Small footprint, suitable for any vehicle cab
Suitable for progressive and single-line lubrication systems
Inputs are available
Pressure/cycle switch
Low level switch
Available outputs
Pump control signal
Low liquid level alarm signal
Pressure/cycle alarms
System normal operation signal
